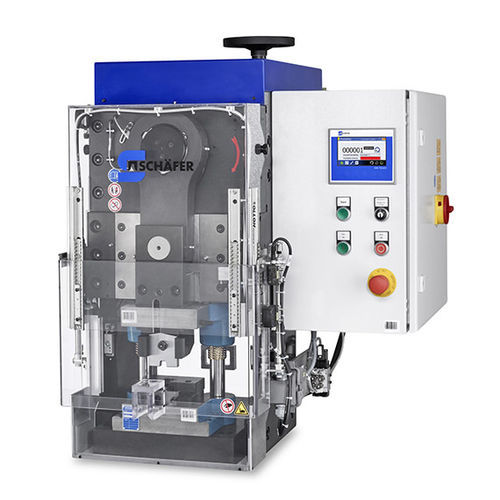

Cable crimping machine CrimpLine 1550 EXTENDEDfor cable terminalswireautomatic
Add to favorites
Compare this product
Characteristics
- Product handled
- cable, for cable terminals, wire
- Operational mode
- automatic
- Other characteristics
- for medium-scale production
- Crimping force
150 kN
- Crimping capacity
50 mm
(2 in)- Power
4 kW
(5.44 hp)- Voltage
400 V
- Weight
500 kg
(1,102.311 lb)
Description
Overview
The crimping machine is engineered for reliable crimping of individual terminals on large cross-section wires and cables. Terminals and conductors are manually positioned by the operator and the crimp cycle is initiated with a foot switch. The robust, modular construction ensures long service life, high reproducibility and short set-up times, while enabling flexible extensions and automation options.
Connecting of Terminals and Wires
Processes individual terminals and single- and multi-core cables. Wire cross section: up to 100 mm² depending on material and terminal geometry. Quick-change crimp applicators allow fast tool changeovers. Crimping speed and parameters can be adjusted to terminal and conductor properties for optimal results.
Modern Operating Interface
Equipped with an STI 2015 touchscreen HMI offering an intuitive, multilingual user interface. Multiple user roles and operating modes are available. Machine networking functions (RJ-45) and communication options support integration into production lines and Industry 4.0 workflows.
High Safety for Operators
Operator protection is provided by a monitored sliding cover; removal of safety guards interrupts the electrical safety circuit and stops the machine. A handwheel enables safe manual test operation after changeovers and maintenance.
Conformity
Complies with applicable European directives for mechanical and electrical safety and electromagnetic compatibility (EMC).
Illustrations
Product images are exemplary and may show options or specific equipment.
Base Equipment
Optional Extensions
Technical Data
Processable materials: wire; single- and multi-core cables. Wire cross section: up to 100 mm² (depending on material and terminal geometry). Terminals: individual terminals.
Specifications
The crimping machine is engineered for reliable crimping of individual terminals on large cross-section wires and cables. Terminals and conductors are manually positioned by the operator and the crimp cycle is initiated with a foot switch. The robust, modular construction ensures long service life, high reproducibility and short set-up times, while enabling flexible extensions and automation options.
Connecting of Terminals and Wires
Processes individual terminals and single- and multi-core cables. Wire cross section: up to 100 mm² depending on material and terminal geometry. Quick-change crimp applicators allow fast tool changeovers. Crimping speed and parameters can be adjusted to terminal and conductor properties for optimal results.
Modern Operating Interface
Equipped with an STI 2015 touchscreen HMI offering an intuitive, multilingual user interface. Multiple user roles and operating modes are available. Machine networking functions (RJ-45) and communication options support integration into production lines and Industry 4.0 workflows.
High Safety for Operators
Operator protection is provided by a monitored sliding cover; removal of safety guards interrupts the electrical safety circuit and stops the machine. A handwheel enables safe manual test operation after changeovers and maintenance.
Conformity
Complies with applicable European directives for mechanical and electrical safety and electromagnetic compatibility (EMC).
Illustrations
Product images are exemplary and may show options or specific equipment.
Base Equipment
- Crimping machine
- Machine cover
- Foot switch
Optional Extensions
- Specific wire gripper
- Networking module
- Remote service module
Technical Data
Processable materials: wire; single- and multi-core cables. Wire cross section: up to 100 mm² (depending on material and terminal geometry). Terminals: individual terminals.
Specifications
- Drive: 4 kW three-phase motor
- Motor speed: 1420 rpm
- Pressing force: 150 kN
- Stroke: 50 mm
- Closing height: max. 204.8 mm (adjustable to 135.78 mm via adapter)
- HMI: STI 2015 touchscreen
- Power supply: 3x 400 V, 50/60 Hz
- Compressed air: 6 bar
- Network interface: RJ-45
- Dimensions (W x D x H): 750 x 850 x 900 mm (approx. basic equipment)
- Weight: 500 kg (approx. basic equipment)
Catalogs
CrimpLine 1550 EXTENDED
4 Pages
Other Schäfer Group products
Crimping Machines
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
