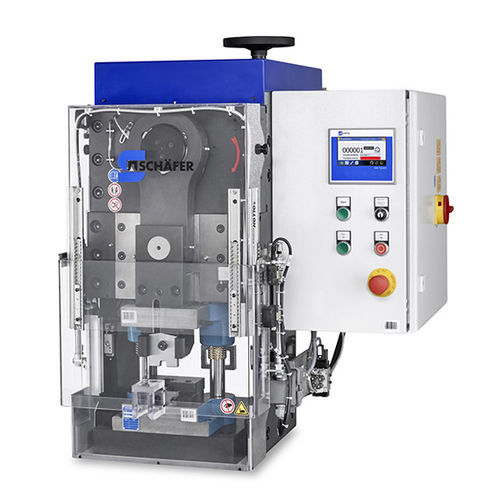

Cable crimping machine CrimpLine 1050 EXTENDED

for cable terminalswireautomatic

Connecting of Terminals and Wires
The machine is designed for crimping individual terminals on wires with large cross-sections. Terminals and wires are positioned by the operator and the crimping cycle is initiated via foot switch. Robust mechanical design ensures long service life and reproducible crimp connections. The modular construction reduces set-up times and allows multiple expansion options.

Wide Range of Use Options
High flexibility is achieved through simple changeover to different products. Crimp applicators can be exchanged quickly using the rapid-change device. Crimping speed can be adjusted to match terminal properties and process requirements.

Modern Operating Interface
The touchscreen control provides an intuitive, multi-language user interface for safe and efficient operation. Configurable user roles, operating modes and machine networking functions support flexible production workflows.

High Safety for the Operator
Operator protection is provided by a monitored sliding cover: opening the cover interrupts the safety circuit and stops the machine. A handwheel allows safe manual testing after changeover and maintenance.

Conformity
The machine for terminal and wire processing complies with applicable European directives on mechanical and electrical safety and electromagnetic compatibility.

Illustration note
Product illustrations are exemplary and may show optional equipment or specific configurations.

Base Equipment

• Crimping machine
• Machine cover
• Foot switch

Optional Extensions

• Crimp force monitoring
• Specific crimping applicators
• Machine table
• Trigger sensor
• Networking module
• Remote service module

Technical Data (summary)
The following technical data are provided as core machine specifications and approximate values in basic equipment.
