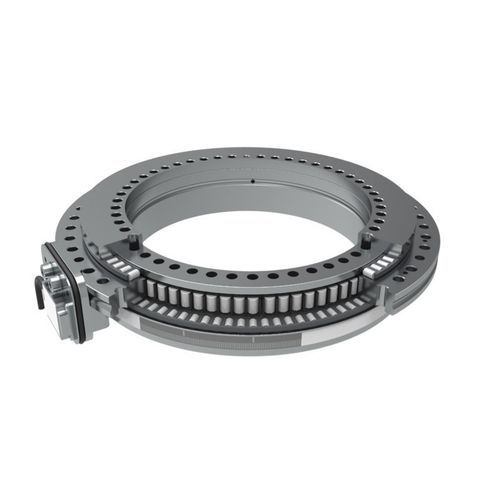

Position measuring system YRTCMI

angleinductiveelectronic

Product overview
Measuring system bearings with MHI measuring heads for incremental, inductive angle measurement. Robust and functional safety compliant measuring system for excellent machining quality and maximum machine availability for electrically driven axes in machine tools.

Your benefit

• Excellent positioning accuracy and extremely small positioning scatter band
• Optimal positioned incremental angle measuring system
• High machine availability
• Easy assembly and adjustment
• Many engineering options
• Functional safety compliant measuring systems for safety-relevant, electrically driven axes
• No additional components required for the measuring system
• Compatible with all relevant control systems
• Stable data transmission by using slip rings

Comprehensive reasons to use YRTCMI measuring system bearings

• Extremely high machining quality: Precise, reliable angular measurement carried out directly in the bearing level which reduces the positioning scatter band and produces extremely high machining accuracy.
• Incremental measuring method and data transmission: Analog signal 1 Vpp compatible with conventional controls; a second distance-coded track provides an absolute reference; continuous analog voltage ensures stable data transmission via slip rings.
• Inductive operating principle: Reliable and fail-safe inductive principle prevents machine failures; increases machine availability; axial head can be mounted without adjustment.
• Integration into rotary table bearings: Reduced installation space increases available machining area and frees center space for power/data/media supply lines.

Features

• Incremental measuring method
• Inductive operating principle
• Integrated into the bearing
• Hollow shaft and free space in the center of the axis
• Electronic interface: analog signal SIN COS 1 Vpp
• Electronically compatible with all conventional machine tool control systems
• Precise angular measurement and smallest positioning scatter band
• High reliability
• Functional safety

Sectors

• Machine tools

Technical characteristics / specifications

• Measuring head type: MHI measuring heads (incremental, inductive)
• Measuring principle: Inductive incremental with second distance-coded track for absolute reference
• Output signal: Analog SIN/COS, 1 Vpp
• Data transmission: Continuous analog voltage suitable for slip rings
• Integration: Angular measuring system integrated into rotary table bearing (saves installation space)
• Mechanical: Hollow shaft and free center space for cables and media
• Compatibility: Electronically compatible with conventional machine tool control systems
• Safety: Functional safety compliant options available
• Assembly: Axial head mountable without adjustment
