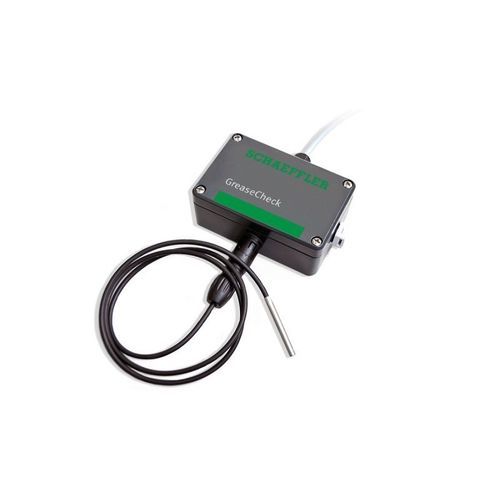

Grease flow meter GreaseCheck

analog outputdigital outputIP67

Product overview
The GreaseCheck grease sensor enables continuous, online monitoring of grease condition in grease-lubricated rolling bearings. Online grease monitoring reduces the risk of bearing failures by providing current information on grease condition so lubricant can be replenished or replaced before damage occurs. Lubricant service life is a determining factor for bearing lifetime.

Your benefit:

• Current information on grease condition inside the bearing
• Eliminates manual sampling and offline grease analysis
• Enables automated, optimized, condition-based relubrication
• Reduces consumption of fresh and used grease (sustainability)

Comprehensive reasons to use GreaseCheck

• More efficiency: Online grease condition data optimizes relubrication and saves time and cost compared with offline analyses.
• More productivity: Maintaining good grease condition helps prevent a significant share of bearing failures, reducing downtime.
• Enhanced reliability: Allows condition monitoring in hard-to-reach machines and installations with minimal effort.

Features

• Independent, maintenance-free measuring system
• Protection rating: IP67
• Interfaces: analog, digital and CAN bus for system integration
• Monitors grease contamination, consistency (state) and water ingress
• Very compact sensor head (approx. 5 mm diameter) for installation in confined spaces

Sectors

• Wind power
• Pulp and paper
• Raw materials / metallurgical production and processing

Characteristics / technical specifications

• Independent, maintenance-free sensor system for continuous grease condition monitoring
• IP67 protection against dust and water
• Multiple interfaces supported: analog, digital and CAN bus for integration into condition monitoring systems
• Measures grease contamination, consistency and water ingress
• Very compact sensor head (approx. 5 mm diameter) suitable for confined installations
• Enables condition-based relubrication to reduce grease consumption and avoid premature bearing damage
