Linear guide unit with flat needle roller cage

precisionplasticsteel

Product description

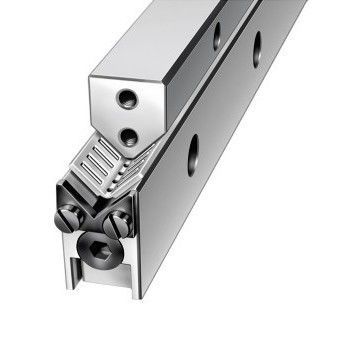

The base configuration includes M and V guideways equipped with angled flat cages (angled needle roller or angled cylindrical roller). These units function as linear locating bearings and are offered in quality grades Q2, Q6 and Q10.

Cage materials

• Steel (metal) cages: suited to demanding conditions such as high acceleration, elevated temperatures and applications where cage ends are exposed during operation.
• Plastic cages: economical option for standard operating conditions with lower mechanical or thermal stresses.

Accessories

• End pieces for sealing and protecting guideway ends.
• Scrapers to shield raceways from contaminant ingress.

Technical specifications

• Product type: M and V guideways with angled flat cage
• Cage types: angled needle roller or angled cylindrical roller flat cages
• Function: linear locating bearing
• Quality grades available: Q2, Q6, Q10
• Cage materials: steel (metal) or plastic
• Accessories: end pieces and scrapers
