Linear positioning stage translationmulti-axisball bearing
Add to favorites
Compare this product
Characteristics
- Orientation
- linear, translation
- Number of axes
- multi-axis
- Other characteristics
- high-load, ball screw, ball bearing, trapezoidal screw, direct-drive, integrated recirculating ball bearing guide
- Stroke
Max.: 100,000 mm
(3,937.008 in)Min.: 0 mm
(0 in)
Description
Product description

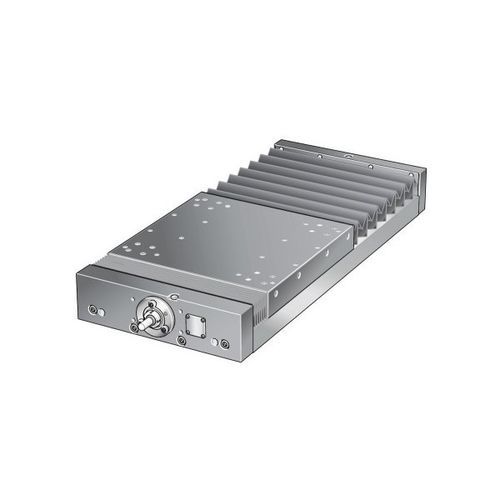

Linear tables are used when larger masses need to be moved in one or more axes. Their extended support spans enable these units to withstand high torques. Guidance is provided by linear ball bearings or linear recirculating ball bearing and guideway assemblies. Linear tables are available without a drive, with a ball screw drive, a trapezoidal lead screw drive or as a direct-drive solution.
Complementary systems
The range of driven linear units is complemented by matched control systems, motors and gearboxes optimized for coordinated performance and simplified integration.
Guidance and drives
Technical specifications
Linear tables are used when larger masses need to be moved in one or more axes. Their extended support spans enable these units to withstand high torques. Guidance is provided by linear ball bearings or linear recirculating ball bearing and guideway assemblies. Linear tables are available without a drive, with a ball screw drive, a trapezoidal lead screw drive or as a direct-drive solution.
Complementary systems
The range of driven linear units is complemented by matched control systems, motors and gearboxes optimized for coordinated performance and simplified integration.
Guidance and drives
- Linear ball bearings
- Linear recirculating ball bearing and guideway assemblies
- No drive (idle)
- Ball screw drive
- Trapezoidal lead screw drive
- Direct drive
Technical specifications
- Application: moving larger masses in one or more axes
- Capability: support of high torques due to large distances between support points
- Guidance systems: linear ball bearings; linear recirculating ball bearing and guideway assemblies
- Drive options: no drive, ball screw, trapezoidal lead screw, direct drive
- System scope: driven linear units complemented by matched control systems, motors and gearboxes
- Product category: driven linear units / linear guidance systems
