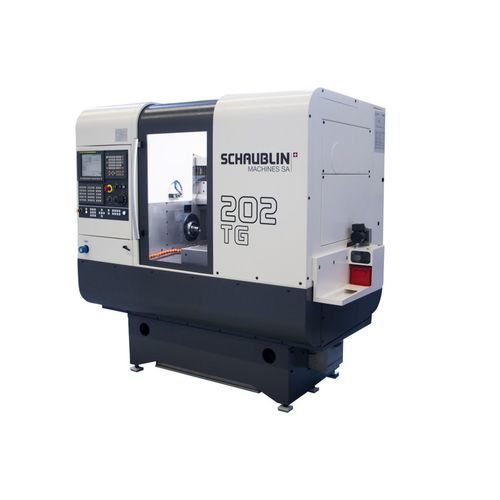

CNC turning center 202 TG8-axis12 tools4 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 8-axis
- Number of tool stations
- 12 tools, 4 tools
- Performance
- high-precision, high-productivity
- Associated function
- grinding
- Diameter
80 mm
(3.15 in)- Spindle speed
Max.: 60,000 rpm
(376,991.118 rad.min-1)Min.: 2,000 rpm
(12,566.371 rad.min-1)- Maximum part length
150 mm
(6 in)- Axe X
150 mm
(6 in)- Axe Z
300 mm
(12 in)- Rapids on X
20 m/min
- Rapids on Z
20 m/min
- Nominal power
Max.: 9 kW
(12.2 hp)Min.: 5 kW
(6.8 hp)- Maximum torque
26 Nm, 35 Nm
(19 ft.lb, 26 ft.lb)- Coolant capacity
135 l
(36 gal)- Overall lenght
1,930 mm
(76 in)- Overall width
1,300 mm
(51 in)- Overall height
2,040 mm
(80 in)- Weight
3,000 kg
(6,614 lb)
Description
The 202 TG offers atypical machine kinematics for turning, milling and grinding. The two independent slides are based on a cast-iron structure, and the X and Z axes are thermally stabilized. These features guarantee flawless precision and a long service life. The machine’s high rigidity enables it to machine hardened materials. Available in linear or 12-position revolver versions, the accessories available for the 202 TG give it a wide range of machining geometries
