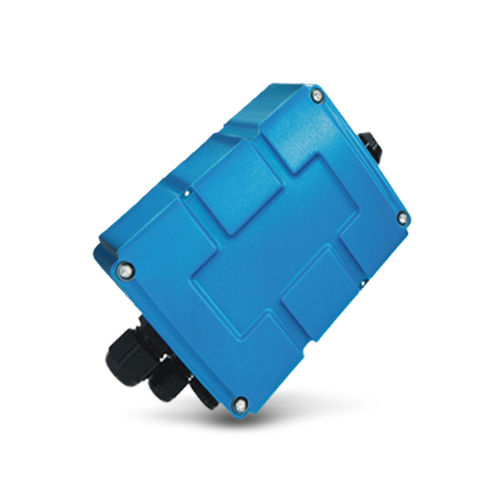

Power data logger DATAEAGLE 7020

temperatureuniversalwater level

The DATAEAGLE 7020 is a compact gateway to log, process and transmitt signals from sensors. The sensors can be connected to 4 universal input ports. The sensors can be powered by the DATAEAGLE. It also has 1 floating switch contact to control an actuator. It can also be used to activate the measurement of the sensor. The DATAEAGLE 7020 is powered by a battery. The charger is integrated which makes it suitable for the usage with a solar Panel. The parametrization is done via DATAEAGLE Potral, a device cloud. The gateway can be used worldwide at flat rate costs due to the integrated eSIM card. DATAEAGLE 7020 features: 4 universal ports (4-20 mA or 0-10 V or digital or 1 Temperature sensor PT100/1000) 1 floating switch contact 3,3V power supply for 1 sensor 1 switchable power supply for sensor (15V at Iout 45mA or23,3V at Iout 45mA) IP67 The product series DATEAGLE 7010 is in IP 20 and has no battery. The DATAEAGLE 7050 contains various fieldbus interfaces to implement Remote Machinery Monitoring. Application examples & scenarios Alarm indication Sensor & actuator monitoring Water level measurement Condition Monitoring of pumps Temperature monitoring Predictive maintenance Data Logging
