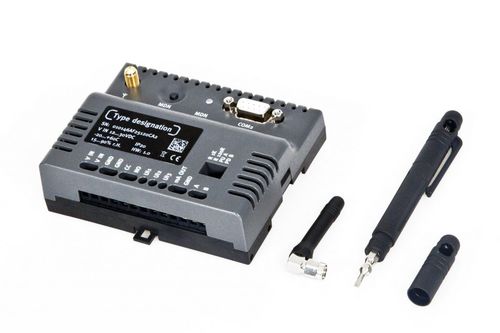

Radio data transmission radio transmitter DATAEAGLE 7011

RS232RS485Modbus RTU

We have developed a gateway that enables you to transmit sensor data via mobile radio to the cloud. The gateway DATAEAGLE 7011 picks up sensor data through its universal input ports. It has a serial interface for a digital sensor or Modbus RTU communication. You are able to easily configure the gateway through the Device Cloud. Sensor signals can now be reliably transmitted to the cloud by radio using DATAEAGLE 7000 series. DATAEAGLE 7010 measures and controls sensors. Analog and digital sensors can be connected to the univerals inputs. Adding to the versatility of the DATAEAGLE 7010 series cloud we offer numerous options like RS232 or RS 485 interface as well as mA- and relais-outputs for remote control. The gateway itself is designed for quick commissioning: It can be programmed remotely through an online portal (Device Cloud), that has predefined parameter settings to transmit sensor values. The DATAEAGLE 7010er series contains an integrated battery which allows operating in case of the loss of AC power. DATAEAGLE 7012 product features: 3 universal input ports (4-20 mA or 0-10 V or digital) 2 serial ports RS485 and RS 232 for a digital sensor 1 analog output port and 1 Relais output Integrated eSIM-card with worldwide roaming functionality You can connect an intelligent display via the RS 232 interface of the DATAEAGLE 7010 and 7011. The DATAEAGLE 7010 provides more universal inputs and a LAN-interface. The DATAEAGLE 7012 has only analog and digital ports. The gateway DATAEAGLE 7020 is battery-powered and designed for outdoor applications.
