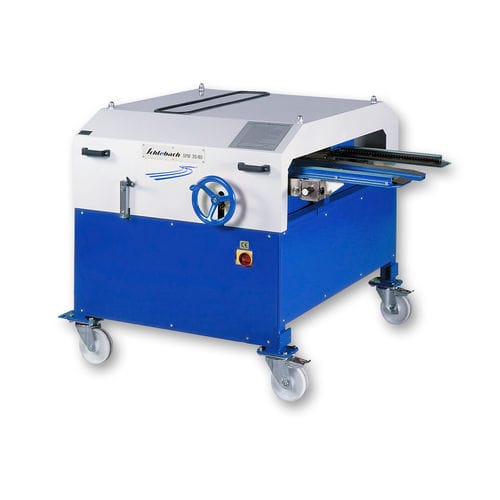

Profile roll forming machine PM series

The basic model of the robust SPM / PMC series for producing double standing seam with a height of 25 mm or 32 mm, either in standard shape (SPM) or with clip relief (PMC). Robust and suitable for many double standing seam profile applications Can be retrofitted with additional elements even at a later point in time thanks to the modular construction Tapered, conical or fitting panels in 2 work cycles Infeed width max. 870 mm, infinitely variable Alternative: Special model SPM 1000 / PMC 1000 with max. 1.080 mm Shortest panel length 500 mm (depending on the material) Available for standard double standing seam (SPM) or with clip relief (PMC) Roll sets for double standing seam 25 mm as well as 32 mm available Adjustable infeed guides on ball-bearings for material guidance Profile rollers made from high-quality special steel with high level of corrosion and wear protection Resilient mounts of the upper profile rollers ensure impression-free and low-wear production of the panels
