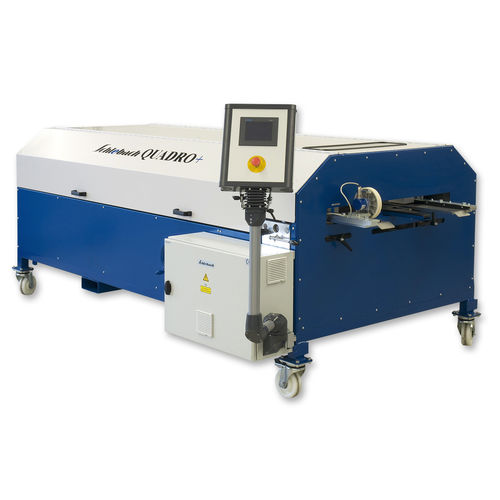

Profile roll forming machine QUADRO

The QUADRO profiling machine is a versatile and multi-functional profiling shaping system. The basic machine is designed to produce sheet metal profiles for a large variety of applications with a user-friendly system and very short retooling times. The profiling machines exchangeable cassette system with 10 or 12 forming stations provide for very short retooling times for different profiles. This means that the Quadro machine can be used effectively and economically for a variety of different profile shapes. An ingenious design permits customers to select the required equipment individually, i.e. the type of application of the machine. The machine can also be upgraded at any time by the addition of another cassette, or various accessories. QUADRO SERIE Robust, versatile and multifunctional User-friendly PLC control with touch panel Stepless width adjustment 300 – 800 (1250/XXL) Low length tolerance of approx. 1-2 mm Feed rate 14, alternative 20 m/min Selection of a variety of roof and façade profiles / special profiles to meet customers’ wishes Exchangeable cassette system for short changeover times High profile quality thanks to the large number of forming stations Can also be used for single-sided passes for conical panels Electrically powered roller shears to perform cross cuts with automatic cutting Can be adapted to suit many applications thanks to extensive accessory range / additional modules Shortest panel length approx. 700 mm / depending on material and profile Optional cutters for panel lengths over approx. 100 mm Optional longitudinal cutter (LS) for producing fitting strips (see Quadro KS)
