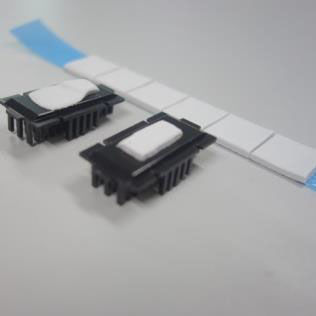

OU-809P is a high Compressible Gap Filler (Putty Type) with high performance thermally conductive compound and will not dry out. The surface consistency is excellent for filling surface irregularities as OU-809P is Sheet structure, which is convenient to use.
OU-809P provides a cost effective solution for application where rapid heat transfer from heat source to spreader is required.
OU-809P is RoHS compliant and halogen-free, offering extra reassurance in applications which hazardous substances are forbidden
Color -
Grey
Thickness Range [inch/(mm -
0.04" (1.0)~0.40" (10.1)
Density [g/cm³] -
3.4
Thermal Conductivity [W/mK] -
9
Operation Temperature [°C] -
-40°C~180°C
Halogen-Free [under 700ppm] -
Yes
