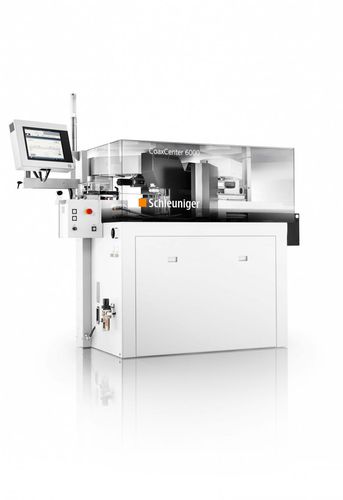

Cable shield processing machine CoaxCenter 6000

The CoaxCenter 6000 is the world’s first machine that can process micro-coaxial and coaxial cables as well as single-conductor wires fully automatically and with high precision. Consequently, the range of applications is in line with the latest trends in automation, miniaturization, information and communication technology, and mobility. The machine platform can be individually fitted with up to six processing stations. Stripping is carried out using the RotaryUnit 6000 or using V-shaped blades with multi-blade heads. The blades and cable guides are designed so that the cable is optimally held in position during processing, without being damaged by the clamping pressure. Stripped cable parts are disposed of by a powerful extraction system. The cable end is held by a single gripper during all processes. It retains its exact position and is fed to the individual stations with maximum positioning accuracy. The quality of the process steps is inspected by the QCam 360 camera system. Stripped cable ends and the correct positioning of crimp terminals are continually monitored, and incisions and scrap stranded wire are detected. Reject parts are sorted out immediately. The CoaxCenter 6000 portfolio is rounded off by unique processing modules such as a centrally closing crimping press for very small and delicate crimping applications from 0.013 mm² to 2.5 mm² and a fully programmable chamfering station for solid wire inner conductors. Thanks to the open machine concept, processing stations from third-party suppliers can also be integrated into the platform.
