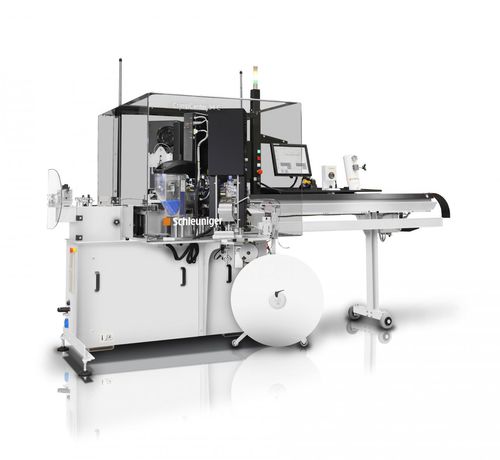

Cable crimping machine 34 C

fully-automaticelectro-hydraulic

The CrimpCenter 34 C is a 4 station machine based on the well proven 3-series and designed for the major application range. It is designed for the APAC market focusing on China. To guarantee short lead times to the market and keep the logistic & customs efforts for our customers as simple as possible, this machine is manufactured directly in China. Unbeatable price- performance ratio German quality engineering Small footprint In-line with today´s automotive requirements Simple network integration User interface with touchscreen and icon based EASY software Design Following the design concepts of the CrimpCenter family, the CrimpCenter 34 C features off-the-shelf components, the intuitive “EASY” user interface and network capabilities via EASYNet or WPCS. The 3-series has been refined in regards to: Universal cutter blocks for more flexibility Modular conveyor belt system for simple conveyor belt extension Revised UniCrimp 221/222 applicator adaptation for more flexibility and an easier retrofit New station connection cable routing for easier maintenance Processing Stations UniCrimp 221 Crimping station with integrated CFM 20 UniCrimp 222 Crimping station with integrated CFM 20 and electronic crimp height control SealLoad 3100 Seal loading station SLU 3000 Sealing station Options Please contact your local sales company for a complete list of available options. Material Change Detection Barcode Scanner Integrated CHM crimp height measuring device Integrated Pulltester 320 Conveyor extensions PreFeeder 60 (low-version) Metronic alphaJET tempo or alphaJET pico
