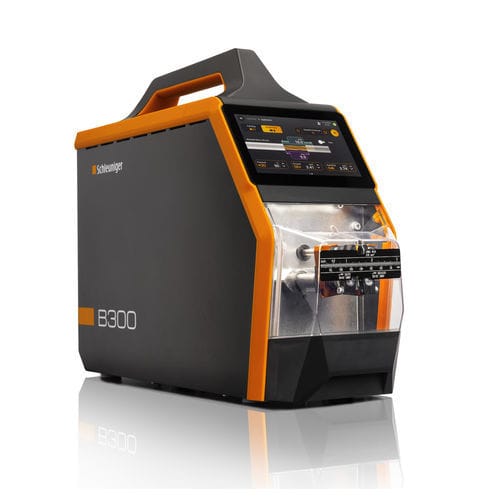

Electrical cable stripping machine Strip Series B300
coaxial cablefor electrical wireelectric

electrical cable stripping machine
electrical cable stripping machine
Add to favorites
Compare this product


Characteristics

Product to be stripped
for electrical cables, coaxial cable, for electrical wire
Other characteristics
electric, portable, programmable, semi-automatic, rugged
Diameter

Max.: 7 mm
(0.28 in)

Min.: 0 mm
(0 in)

Description

In its price class, the portable B300 stripping machine opens up completely new possibilities for fast and at the same time reliable stripping of cables with cross sections from 0.03 to 8 mm2 (32 to 8 AWG). The ergonomic machine design and the completely revised user interface on the high-resolution 5” color touchscreen offer unrivaled ease of use. The B300 is extremely ease to operate, even without programming knowledge. Simplified input screen content and the guided menu navigation make for intuitive handling. Process parameters stored in the software allow out-of-the-box use for the common functions of stripping with full and partial pull-off and recutting. More complex applications, the storing of articles, or a customer-specific process parameterization can be achieved with the optional software upgrade. The repeat accuracy, mechanical precision and short work cycles ensure high productivity in common stripping applications.

VIDEO
