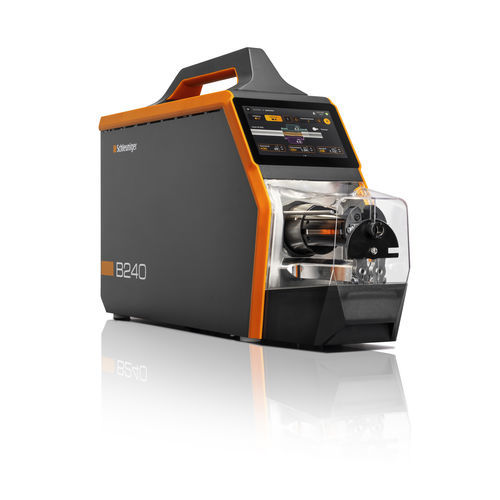

Coaxial cable stripping machine Strip Series B240

for electrical wireportableprogrammable

The Strip Series B240 is a programmable strip machine for the stepped processing of coaxial cables as well as the processing of multiconductor and single-conductor cables. Equipped with two rotary blades, it processes simple stranded wires and multiconductor cables with a cross section from 0.013 to 13 mm² (36 to 6 A WG) and a diameter of up to 9 mm (0.35”), thus achieving a strip length of 39 mm (3.15”) and a pull-off length of 40 mm (1.57”). Even challenging materials such as PUR, PVC, rubber, Teflon®, Tefzel® or textile glass braiding can be stripped cleanly and reliably thanks to the cutter head’s high-resolution movement axes. The B240 also processes micro-coaxial cables with a diameter of up to 0.8 mm (0.02”) without the need for changeovers. Repeat accuracy, mechanical precision and short work cycles ensure high productivity. The blades and universal clamp jaws on the B240 can be used across the entire range of cable processing applications – machine downtimes due to changeovers are eliminated. The focus on ergonomic operation and programming via a 5" color touch screen with good accessibility further increase productivity. The B240 is quick to deploy and is particularly easy to operate without programming knowledge thanks to its state-of-the-art, intuitive software interface.
