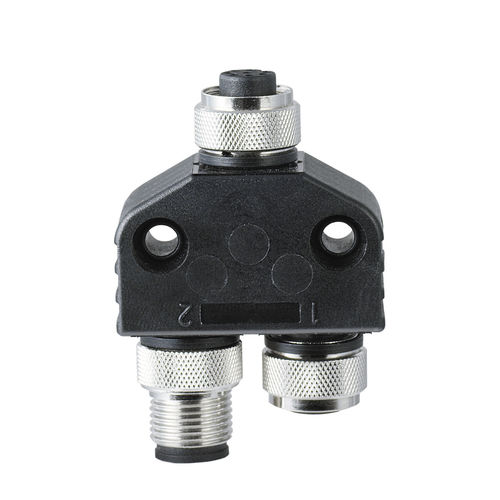

Distributor SD-Y-POWER

Accessories for series-wiring with serial diagnostics Ordering data EAN (European Article Number) - 4030661469416 eCl@ss number, version 12.0 - 27-44-01-06 eCl@ss number, version 11.0 - 27-44-01-06 eCl@ss number, version 9.0 - 27-44-01-06 ETIM number, version 7.0 - EC002925 ETIM number, version 6.0 - EC002925 Approvals - Standards Certificates - cULus General data Versions - Y-adapter Connector (electric) - 1 x Male connector, 4-pole 1 x Male connector, 8-pole 1 x Female connector, 8-pole Gross weight - 50 g Mechanical data - Dimensions Length - 54.5 mm Width - 38 mm Height - 20 mm Diameter of the ISO-thread - M12 Ambient conditions Ambient temperature - -25 ... +75 °C Electrical data Rated operating voltage - 30 VDC Operating current - 4,000 mA Accessory Recommendation (product combination) - Sensors and solenoid interlock
