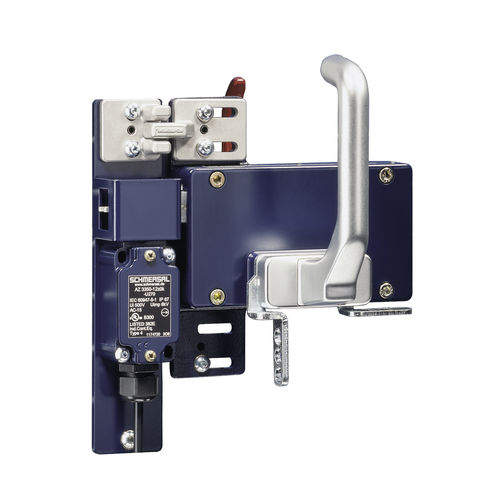

Door-handle actuator AZ 3350-STS30-01

Latching handle Suitable for all types of guard Ordering data EAN (European Article Number) - 4030661307541 eCl@ss number, version 12.0 - 27-27-26-06 eCl@ss number, version 11.0 - 27-27-26-06 eCl@ss number, version 9.0 - 27-27-26-06 ETIM number, version 7.0 - EC001487 ETIM number, version 6.0 - EC001487 General data Housing coating material - painted Material of the operators - Aluminium Material of the mounting plate - steel Gross weight - 1,780 g General data - Features Emergency handle - Yes Mechanical data Door hinge - Right Shearing force - 15,000 N Actuator mounted - Inside Scope of delivery - The door latch is not included in the scope of delivery Notes - Dimension drawing Note - The drawings are always shown with a view to the switch.
