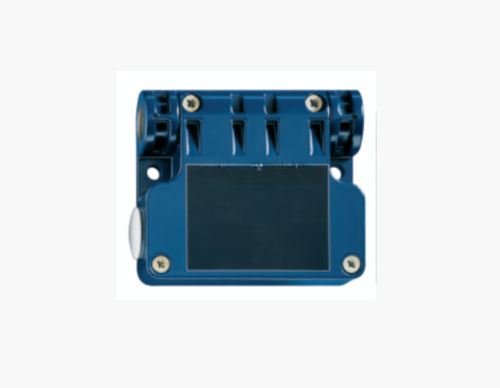

Multipole switch TV8S 521 seriesmetalwith separate actuator
Add to favorites
Compare this product
Characteristics
- Number of poles
- multipole
- Other characteristics
- metal, with separate actuator
- Primary current
10 A
- Voltage
4 kV
- Diameter / length
27 mm
(1.1 in)- Operating temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)- Width
92 mm
(3.6 in)- Height
81.5 mm
(3.2 in)
Description
Metal enclosure
Good resistance to oil and petroleum spirit
Mounting independent of hinge
92 mm x 81,5 mm x 27 mm
Variable mounting on hinged side
Rail-mounting possible with slot nuts
2-channel, alternating monitoring
Actuator shaft can be turned 360°
For left or right hinged doors
Push-in system (toothed shaft)
2 switches in one enclosure
