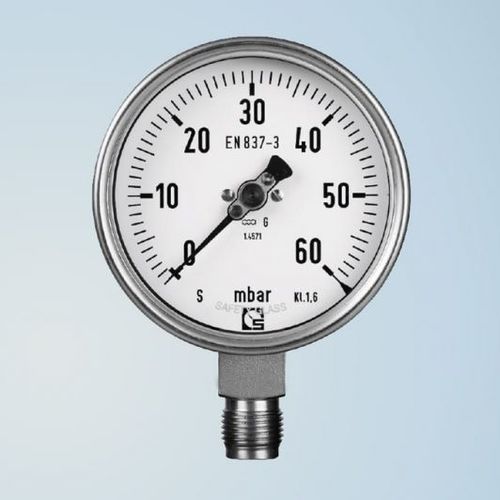

Dial pressure gauge K 100

threadedstainless steelbrass

Two thin corrugated membranes that are air-tightly pressed together make up the capsule. If there is pressure applied to the inside of the capsule it will either expand with positive pressure or contract when negative pressure is applied. This expansion and contraction of the capsule is a measure for the incoming pressure and is carried over to a gear segment onto the gear of the movement. Application purposes With a capsule pressure gauge you can measure a positive pressure up to 600 mbar and negative pressure up to 600 mbar. The accuracy of the gauges is at 1,6% or 2,5 % of the upper range value. Capsule and connection made of brass Bayonet lock case made of stainless steel Threading 1/2″ BSP
