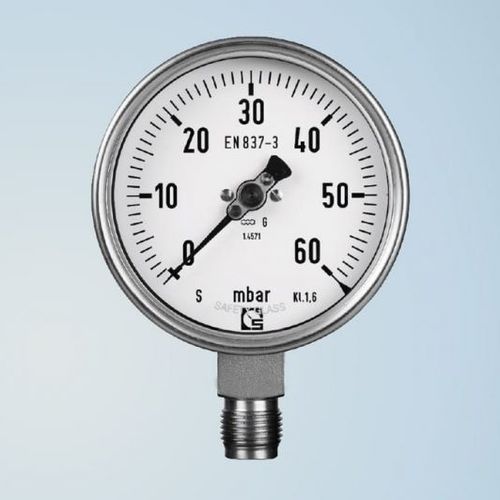

Dial pressure gauge K 160

threadedstainless steelbrass

Two thin corrugated membranes that are air-tightly pressed together make up the capsule. If there is pressure applied to the inside of the capsule it will either expand with positive pressure or contract when negative pressure is applied. This expansion and contraction of the capsule is a measure for the incoming pressure and is carried over to a gear segment onto the gear of the movement. Properties The capsule is made from non-ferrous metal or 316Ti and is only for measuring gaseous mediums. Capsule and connection made of brass Bayonet lock case made of stainless steel
