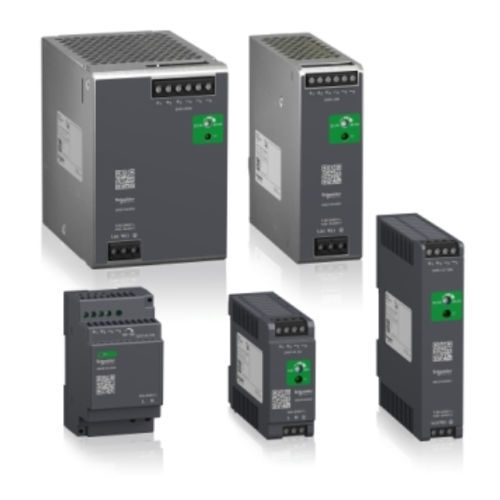

DIN rail power supply AB series

AC/DCregulateddual-output

Modicon switch mode power supply offer is designed to provide the DC voltage necessary for the automation system equipment control circuits. Modicon industrial power supplies are regulated switch mode power supplies, available in 3 types: ABLM Modular, ABLS Optimised, ABLU3 and ABL8RP/WP Universal. Benefits Sustainable Long life time and MTBF, conformal coating, operating temperature up to +70°C Cost saving Compact casing, NEC Class 2 Safe Over and under voltage protection, Hazardous location certification Easy to use Wiring capabilities, multiple terminals, several mounting positions, wide input voltage range Features Modular ABLM • From 10W up to 60W • Single and 2 phases 100...240VAC input • Modular housing with 18, 36, or 53mm width • NEC Class2 / LPS Optimised ABLS • From 50W up to 480W • Single and 2 phases 100...240VAC input • 2 housings formats for a better adaptation to the enclosure; compact and book • Conformal coating (optimized book) • NEC Class2 / LPS • Up to 6 output terminals make wiring easier Universal 3 phases ABLU3 • From 240W up to 960W • 3 phases 380...500VAC input • One of the most compact power supplies on the market • Power boost (150% of the nominal power during 5 sec) • Conformal coating • 2 different output protection modes (Auto/Manu) • Diagnosis contact • Up to +70°C operating temperature • Compatibility with ABL8 functional modules Universal 1/2 phases ABL8RP • From 72W up to 480W • Single and 2 phases 100...500VAC input • Power boost (150% of the nominal power during 4 sec) • 2 different output protection modes (Auto/Manu)
