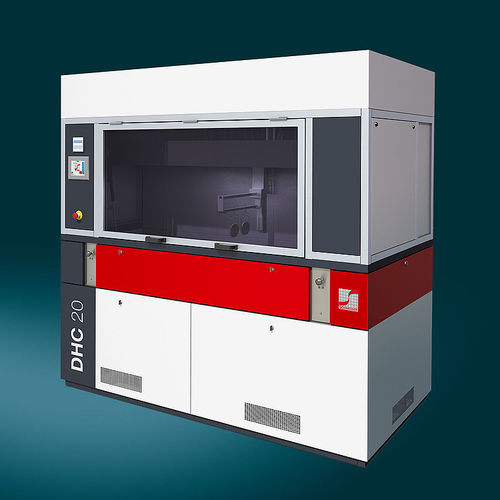

Automated dip coating unit DHC 20

automated dip coating unit
automated dip coating unit
automated dip coating unit
Add to favorites
Compare this product


Characteristics

Operating mode
automated

Description

INFORMATION The DHC 20 is the most compact hardcoating system of SCHNEIDER’s dip-coating series and the perfect solution for small production labs. A servo drive based two axis handling system guides the lenses through the multi-stage process fully automated. Following a three double-stage US-cleaning the lenses are coated in a thermal cure dip-coating process. This includes a primer stage for polycarbonate lenses and two different lacquer types for index matching. The ideal recipes are selected via a touch screen depending on the lens-material and type to achieve the best quality and cosmetic results. For maximum stability of cleaning results over a long period of time the DHC 20 is equipped with a two step DI-water regeneration system using resin and active carbon filters. The DHC 20 is perfectly suited to meet any cleaning and hardcoating process requirements of today’s Rx-labs – no matter what lens material. With a throughput of approx. 20 lenses an hour the DHC 20 is the perfect addition to your small lab. BENEFITS Automated fast 2-axis handling Designed for up to three lacquer tanks Compact three double-stage cleaning process (Semi-)automatic fill and level control on tanks Sliding lid over all coating tanks Primer stage for polycarbonate lenses Integrated fire extinguishing system Easy to use interface TECHNICAL DATA tank sizes and capacity (width x depth x height): cleaning tank: 120 x 220 x 160 mm 12 l (incl. weir, buffer tank & filtration) coating tank: 50 x 220 x 120 mm 1.8 l (incl. weir and filtration) cleaning stages: 1 double stage US-cleaning station 1 double stage tap-water rinsing station
