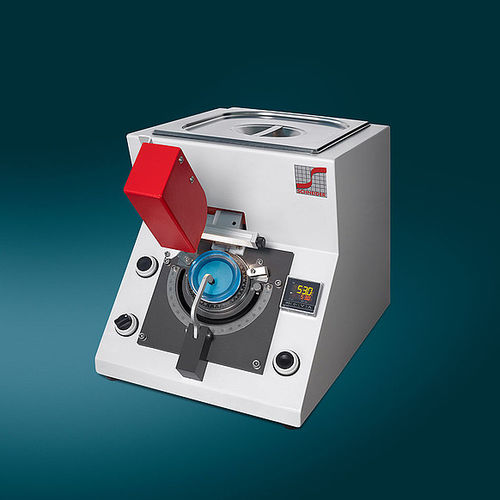

Manual ophthalmic lens blocker CB NANO

INFORMATION With CB nano, the SCHNEIDER Nano Line is extended by a small manual blocking solution rounding out the broad range of capabilities of the line. Despite its small size and low investment, CB nano covers the full range of blocking requirements. It blocks plano, prism, centered, de-centered, single vision, bifocal and front progressive lenses with ease. An optional video-based positioning and centering system assists the operator to guarantee precise block/lens alignment. Just like its surfacing and coating counterparts it is a highly cost-effective system, providing maximum ease of use at a very small footprint – the ideal solution for startups and partner labs. BENEFITS High precision blocking Prism up to 5°Ease of useLow investment Low environmental demands Video-based lens alignment Monitoring of alloy temperature TECHNICAL DATA lens diameter: up to Ø80 mm lens material: all organic materials and mineral lens materials blocking diameter: 48 – 68 mm (special rings upon request) blocking height: 7 – 10 mm blocking material: alloy clamping system: block Ø 43 mm prism: prescription value up to 5°, with the help of prism rings power consumption: 0.2 kVA avg. air requirement: min. 6 bar (87 psi) machine weight: approx. 25 kg (56 lb.) dimensions (width x depth x height): approx. 330 x 495 x 350 mm (13 x 20 x 14 inches)
