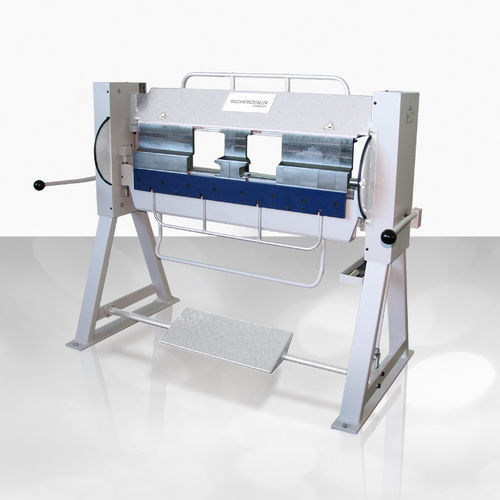

Manual swivel folding machine ASK II

manual swivel folding machine
manual swivel folding machine
manual swivel folding machine
manual swivel folding machine
manual swivel folding machine
manual swivel folding machine
manual swivel folding machine
manual swivel folding machine
Add to favorites
Compare this product


Characteristics

Operation
manual
Folding length

1,050 mm, 1,550 mm, 2,050 mm
(41.3 in, 61 in, 80.7 in)

Description

The segment folding machine ASK II is a very robust machine with a very high bending capacity. Moreover, it has a 2-stage drive adjustable via stop cam as standard. Details Patented quick clamping device with eccentric for quick changing of clamping and folding beam tools Two-stage clamping beam drive for two different tool heights Goat’s foot blade 130 mm high, 30°, sharp, clearance 26 mm, foot width 41 mm, free space 110 mm, segmented incl. corner parts, material strength 700 N/mm² Bottom beam blade, segmented incl. corner parts Folding blade 15 mm, segmented incl. corner parts Segmentation of tools for 1,000 mm: 30/50/70/75/75/100/150/200/300 mm plus 500 mm segments for larger lengths Clamping beam stroke 110 mm Bending angle indicator Foot pedal for opening and closing of the clamping beam

Catalogs

No catalogs are available for this product.

See all of Schröder Group‘s catalogs
