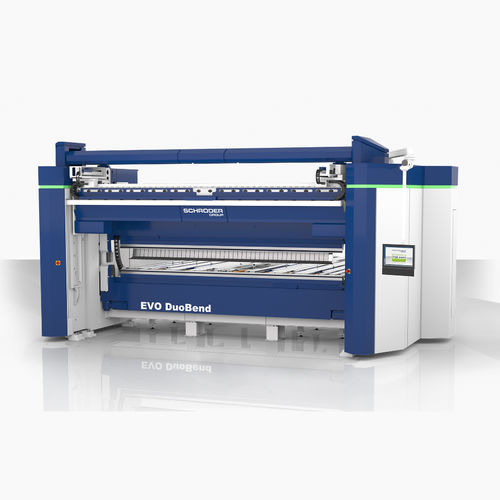

Hydraulic swivel folding machine EVO DuoBend

automatic

The new motorized folding machine EVO DuoBend owes its name „DuoBend“ to its two independently operated folding beams. With the EVO DuoBend, the Schröder Group is once again increasing its flexibility in the area of sheet metal folding many times over: Products for container construction, vehicle construction or conventional folding applications, such as heavy sheets with counterbends, can be manufactured efficiently. Details Software control POS 3000 3-D Graphic control on swivelling arm Radius function Remote maintenance via Internet External programming (PC-Version 1. Licence) Back gauge Gauge table 1700 mm as U-shape divided support plates with steel balls Lateral angle gauge right and left side 1500 mm (outside) Suction plates in gauge table, controlled via POS 3000 2 pneumatic pop up square arms assembled aisle side, program-controlled Gauge axis in front Clamping beam Clamping beam stroke: 850 mm Clamping beam geometry: 180° Fully automatic tool changer WZS 6500: for clamping beam tools with a hydraulic tool clamping device (a total of 8 axis) for max. tool height of 500 mm, two asynchronously movable tool changers with one gripper unit each Folding beam Two folding beams, program-controlled Mechanic tool clamping device (screwed) (WZS 19000) Motorized folding beam adjustment 150 mm Motorized folding center adjustment 370 mm Motorized central crowning device in both beams Work safety Protection via light curtain controlled by safety-PLC for operation from the rear Safety fence with lateral access door Others Standard machine without tools Working height 1160 mm Foot switch, anchor plates incl. dowels, decentralized lubrication system Air conditioner on both switch
