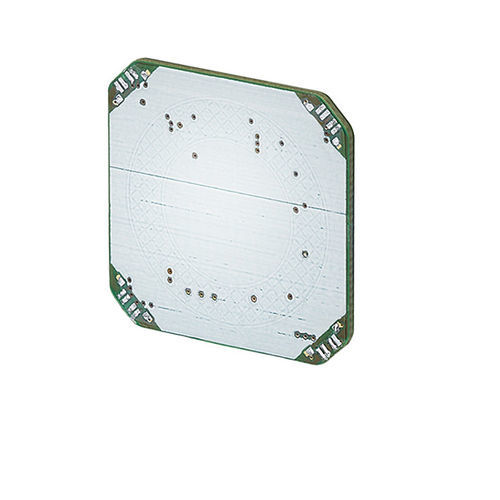

Capacitive switch CHS seriesbacklitlatching
Add to favorites
Compare this product
Characteristics
- Type
- capacitive
- Other characteristics
- backlit, latching
- Primary current
2 mA, 30 mA, 100 mA
- Voltage
Max.: 28 V
Min.: 5 V
- Operating temperature
Max.: 85 °C (185 °F)
Min.: -40 °C (-40 °F)
Description
• Capacitive switch
• Perfect sensitivity
• Multicolor illumination
• Standard Sensitivity for glass thickness of up to 2mm
• Quick and easy installation behind non-conductive materials (glass, plastic, wood,...)
Unique Selling Proposition
• Allows free design, invisible installation
• Fully potted for harshest conditions
• Small mounting depth
• Easy and hygienic cleaning
Characteristics
• Water tolerant
• Illumination area
• Wearless, no moving parts
• Wiping tolerant / Easy to clean
• 3M Adhesive transfer tape 468MP
Other versions on request
• CHS2 / CHS3 without illumination or programmed light settings
• Sensitivity adjustments for other materials and thicknesses
• Switching type latching
