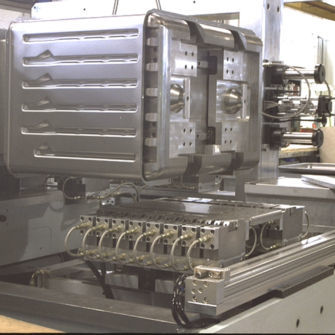

Automatic production cell

continuousautomatedPLC-controlled

Overview
Scott supplies automated equipment for the cooking appliance industry, covering oven cavity and cooktop manufacturing systems. These solutions are designed for integration into high-volume production with options for partial lines or fully automated assembly.

About cooking systems
Oven cavity systems support deep or shallow drawn rails or pans and wire rack arrangements. Systems are configurable for electric, gas or steam appliances and can be supplied as component-only lines (side/back panels, burner boxes) or complete assembly lines for ovens and cooktops.

Manufacturing capabilities and benefits

• Oven cavity systems with deep or shallow drawn rails or pans
• Wire rack handling and integration
• Support for electric, gas and steam appliance variants
• Manufacture of cooker side and back panels and gas burner boxes
• Fully automated oven and cooktop assembly lines
• Forming operations: embossing, stamping, notching, piercing
• Form-and-fold operations for three- or four-sided wraps, bottoms and back panels
• Feedstock flexibility: pre-cut blanks or coil-fed steel
• Welding options: spot weld and rotary weld integration

Performance and technology
Scott designs systems for high-volume production with scalability and flexibility. Equipment can incorporate Industry 4.0 features for data exchange, traceability and process control. Many installed systems have produced tens of millions of components under continuous operation.

Technical specifications

• System types: oven cavity systems, cooktop manufacturing, cooker side/back panel lines
• Material input: pre-cut blanks or coil-fed steel
• Forming processes: embossing, stamping, notching, piercing, bending/folding
• Formed parts: three- or four-sided wraps, bottoms, back panels, gas burner boxes
• Welding: spot weld and rotary weld integration (options per line)
• Supported variants: electric, gas, steam appliance configurations
• Conveyor / rack options: wire rack systems; deep and shallow drawn rails or pans
• Automation: from semi-automated modules to fully automated assembly lines with Industry 4.0 capability
• Designed for: high-volume, scalable production and integration into existing plants

Multimedia
Product pages include demonstration video(s) showing system layouts, typical line flows and examples of finished components.
