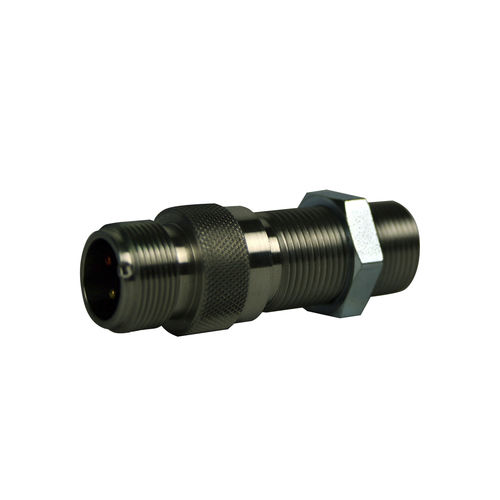

Low energy consumption magnetic sensor 3030AN

threadedfor gear wheelsgear tooth

Magnetic pick-up with Amphenol connector; requires sensor cable assembly. This general-purpose unit is designed to mount in a 5/8”-18 threaded hole and is provided with a jam nut for sensor securing. Model 3030AN pickup provides a sine wave output whenever there is an abrupt change from non-magnetic to magnetic material moving past the sensor pole. The output voltage is directly proportional to the change in magnetic flux intensity over the change in time. Sine wave output from change in magnetic to non-magnetic Change in voltage proportional to magnetic flux intensity over time Range of 0.01″ (0.25 mm) typical clearance Optional cable for 3030AN (CABLE-3030)
