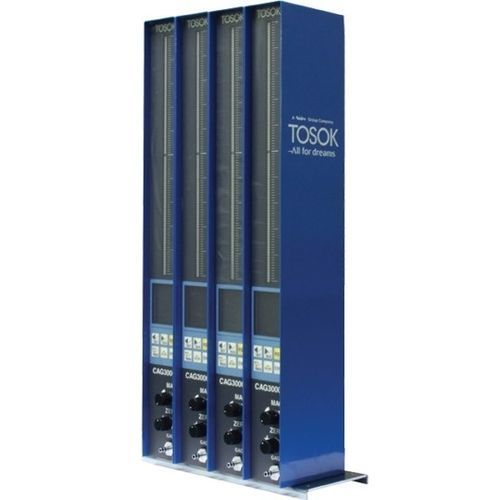

Dimensional gauge CEG-2000

electronicLEDelectric

2 or 4 Channel Electric Gauge display is a precision, contact-measuring instrument when combined with an electronic probe sensor. Electric gauging measurement is a precise, non-destructive, contact testing method that utilizes a sensing probe connected to a display to determine dimensional analysis. Tosok electric sensing probes have spring loaded points on the sensor that create displacement when pushed into or around the dimension in question on the part. Utilizing LVDT sensing technology, the sensor proportionally scales an output that is interpreted by the CEG display as a dimensional value. The CEG-2000 Electric Gauge display with separate, customized probe sensor performs fast, easy and precise dimensional analysis on components. Pass/Fail feedback is instant with the integral easy view three-color LED bar-graph display. Two or four input channel models are available allowing multiple dimensions with various sensors to be connected to the same display. All CEG-2000’s come standard with RS-232 serial communications for data analysis on PC’s. An Excel spreadsheet program is available for download for free from the SHIMPO website that allows communication with up to 5 units simultaneously. The Tosok electric gauge with LVDT technology offers sufficient magnification and reliability to measure small tolerances down to 0.05 micron. Due to its fast response, outstanding tolerance and accurate repeatability, Tosok electric gauge micrometers are ideal for quality measurements on the production floor. Red/Orange/Green 3- color, 101 segment bar graph display with programmable set points makes it easy to quickly view measurements and make go/no-go judgments
