High-voltage indicator PH3

DCLEDportable

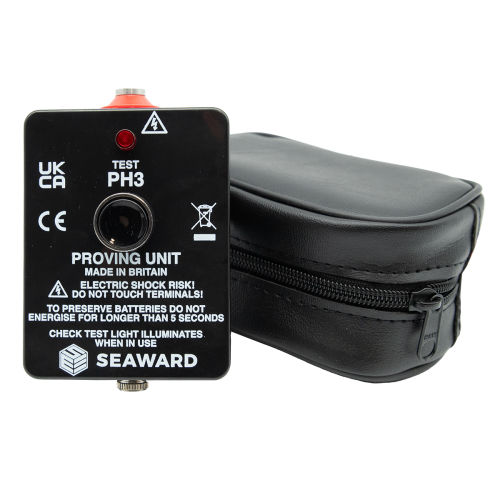

Proving unit for use with high voltage indicators with a domed contact electrode - High voltage output 1500V DC nominal - Neon indicator to show output is active - Very portable A highly portable, battery powered proving unit for proving high voltage indicators, live line testers and digital potential indicators. This proving unit produces a DC output voltage for confirming the operation of voltage indicators before and after use. Designed for use with potential indicators and phasing rods with domed contact electrodes. Technical Specification Output voltage1200V - 1500V DC nominal across 10MΩ Output current0.45mA DC into 2kΩ Test terminalsContact electrode and test post IndicatorNeon indication when output voltage is active Dimensions110mm height, 85mm width, 60mm depth
