Voltage tester PH3-LLT MK1for electrical installationscompact
Add to favorites
Compare this product
Characteristics
- Test type
- voltage
- Tested product
- for electrical installations
- Configuration
- compact
Description
- For use with LLT Live Line Tester MK1
- For use with AGL-5 Air Ground Lighting Tester
- Nominal 500V DC output
- Network Rail Certificate of Acceptance No. PA05/03345

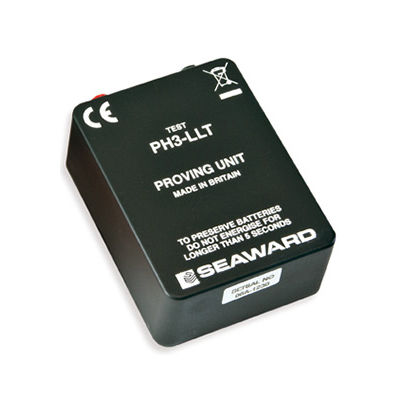

PH3-LLT is a lightweight compact proving unit providing a nominal output voltage of 500V DC.
Output Voltage - 500V DC nominal
Output current - 0.45mA into 2kohm
Two non-touchable terminals
Neon ‘active’ indicator
Compliance BS EN61010
Technical Specifications
Output Voltage - 500V dc nominal
Output current - 0.45mA into 2kohm
Two non-touchable terminals -
Neon ‘active' indicator -
Compliance - BS EN61010-1
Catalogs
No catalogs are available for this product.
See all of Seaward‘s catalogsOther Seaward products
