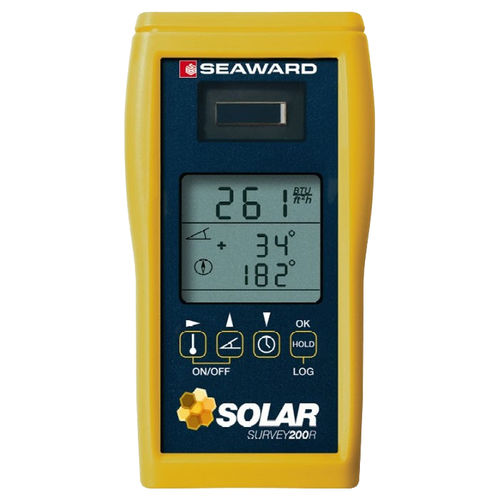

Solar irradiance inspection device Solar Survey 200R

The ultimate site survey tool The Solar Survey series of irradiance meters are the perfect tools for solar photovoltaic and solar thermal installers to conduct comprehensive solar site surveys. With a solar reference cell to measure true irradiance, the Solar Survey provides greater accuracy of measurement data compared to meters which use a photo diode detector. About the Solar Survey Series These rugged handheld units not only measure irradiance, but also have a built-in inclinometer to measure roof pitch, compass to measure roof orientation and thermometer to measure ambient air and module temperature. These unique additional features makes the Solar Survey 100 and 200R truly versatile and indispensable instruments, ensuring optimum conditions for every system you install. The 200R now features new Solarlink™ connectivity which allows it to wirelessly give the PV150/PV200 real-time irradiance, ambient temperature and PV module temperature measurement results simultaneously to electrical tests being conducted, as required by the IEC 62446 international standard. Results can be downloaded from the PV150/PV200 into certification software. The Solar Survey 200R model also includes a data logging facility with USB interface for data download to a PC. This allows for irradiance and temperature to be recorded at user-defined intervals over a number of hours or days, the collected data can then be downloaded to a PC for analysis of for inclusion in installation reports.
