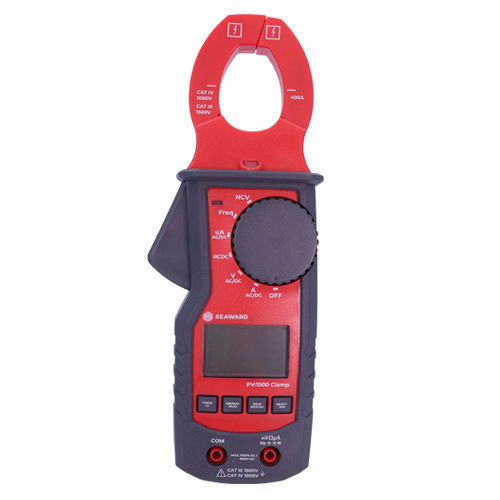

Digital clamp multimeter PV:1500

portable1000 V1500 V

The PV:1500 Clamp is a versatile, high-safety clamp meter designed to work seamlessly with the PV:1525. With Bluetooth connectivity, standalone operation, and CAT III 1500V safety, it’s the perfect tool for fast, accurate solar testing in the field. The PV:1500 Clamp is the ideal companion to the PV:1525 handheld solar tester, giving installers and O&M technicians added flexibility and safety when working on high-voltage PV systems. With Bluetooth connectivity, the PV:1500 Clamp wirelessly transfers AC/DC current and voltage readings directly into the PV:1525 memory, enabling accurate power measurement without manual input. It can also operate as a standalone clamp meter, with its own integrated LCD display, making it a versatile tool for any solar professional’s kit. Rated to CAT III 1500V and CAT IV 1000V, the PV:1500 Clamp allows technicians to verify current flow and system isolation without opening the circuit or breaking strings, helping reduce risk and downtime during testing. Technical Specifications Voltage Measurement AC TRMS *b,c,e - 1mV ... 1000V DC - 1mV ... 1500V ±(1.5% meas value. +5 Digits) to 4V ±(1% meas value. +3 Digits) >4V Resistance, Continuity & Diode Resistance - 0…40MOhm ±(1.5% meas value. +3 Digits) Continuity - < 30R buzzer sound Diode - 0 ... 1.5V Frequency Non Contact Voltage (NCV) Non Contact Voltage (NCV) - Yes Current Measurement Clamp: AC TRMS *c,d - 0.1 ... 400A DC - 0.1 μA ... 400 μA ±(1.5% meas value. +5 Digits) Jack: AC TRMS *b,e - 0.1 μA ... 400 μA ±(1.8% meas value. +5 Digits) Capacitance 51,2nF *f - ±10 % typically
