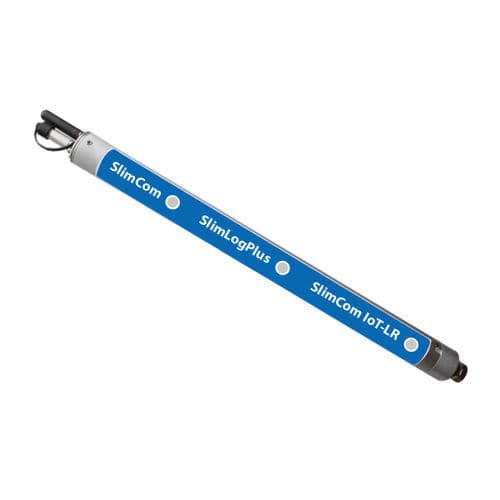

Wireless modem module SlimComdataIoTcellular
Add to favorites
Compare this product
Characteristics
- Type
- wireless, data, IoT, cellular
- Network
- 4G, HSPA, EDGE, LTE, RS485, GSM, GPRS, RS232, HSPA+, UMTS, 3G, 2G
- Application
- outdoor, for IoT applications, for level measurement
- Mounting
- in metering tube, slim metal-cased
- Other characteristics
- with RS-485 interface
Description
Category
Key features
Benefits
Application
Accessories
Technical specifications
- Groundwater, Surface water - Remote transmission
Key features
- Sleek aluminum housing for installation in level tubes from 2" pipe diameter
- Autonomous power supply with standard size C batteries
- Possibility of connecting different types of antennas
Benefits
- Efficient: Low power consumption through intelligent power management = higher battery life = lower maintenance intervals = lower operating costs
- Low maintenance: Operation with commercially available 1.5 V cells or 3.6 V lithium batteries for service lives of up to 5 years (depending on measurement and transmission interval)
- Slim: Ideal for small diameter pipes and for underground measurement sites; comparative measurements with an electric contact gauge can be performed without removing the SlimCom
- Modular: SlimCom can be combined with Dipper-PT and PTEC to provide a remote measuring station transferring data directly to your workplace; various antennas are available for poor reception or underground installations
- Data access: Password-protected web portal SEBA Hydrocenter for secure and anytime access; alternative data provision via secure FTP server
Application
- Construction site supervision, difficult-to-access measurement sites (e.g. underground measurement sites) and measurement sites that require rapid data actualisation or are of major public interest
- Monitoring of retention basins and watercourses
- Monitoring of groundwater measurement stations starting with a 2" pipe diameter
- Cost optimisation by reduction of measurement site visits
Accessories
- Operating software: SEBA Modem Configurator
- Operating Unit: HDA-Pro
- Antennas: 5 dB angle-rod antenna; special rod antenna for underground installations; puck antenna
- Retrieval software: DEMASole
- WEB portal: SEBA Hydrocenter
- Connector: Interface cable (USB, RS232)
- Measuring device protection: SEBA Bearing Tube Closure with plastic insert and a safety closure; SEBA Bearing Tube Closure with a puck antenna and a safety closure
Technical specifications
- General: RDT module for remote data transmission via the mobile phone network. Compatible with Dipper-(A)PT and Dipper-PTEC
- Supported transmission: GPRS / EDGE / UMTS / HSDPA / HSDPA+ / LTE; GSM (SMS alert)
- Frequencies: 4G: B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B14, B18, B19, B20, B25, B26, B28; 3G: B1, B2, B4, B5, B6, B8, B19; 2G: B2, B3, B5, B8
- Transmission options: Data retrieval 4G/3G/2G; FTP/FTPS push (zrxp, D-channel, csv, ACRON)
- HTTP support
- SMS alarm (SlimCom 4G): 8 x SMS alarm to cell phone
- Antenna: Pluggable, SMA connector, robust and weatherproof; external antenna connection possible
- Interfaces: 1 x RS232 for configuration; 1 x RS485 for connection of Dipper-PT / PTEC; Option: Bluetooth via SEBA BlueCon RS232 module
- Time slots: Freely programmable
- Power supply: Standard: 4 x 1.5 V alkaline-manganese batteries C-size; Option: 4 x 3.6 V lithium batteries C-size
- Operating temperature: -20°C ... +50°C (with alkaline-manganese batteries); -30°C ... +70°C (with lithium batteries)
- Storage temperature: -40°C ... +70°C (without batteries)
- Housing: Aluminum
- Dimensions: Ø 35 mm, length 448 mm
- Protection class: Standard version: IP67 (in mated condition); Flood-proof version: IP68 (in mated condition)
