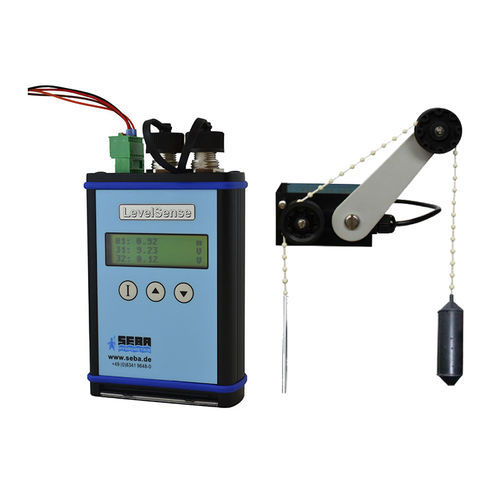

Float level switch LevelSense

for wateraluminumdigital

User-friendly shaft encoder for precise detection of water level fluctuations with a float and counterweight Measuring range: 0-15 m with a ball chain or 0-100 m with float rope Measuring accuracy: 2.5 mm (depending on the size of the float) 3-line display of the current measured values Output signals: RS485 (SHWP), SDI-12, MODBUS, 0/4-20 mA Internal 9V back-up battery Optionally with integrated data logger: UniLog Light ENC Precise and drift-free: The ball chain and the float pulley ensure slippage-free operation even during rapid changes in water level. The float/counterweight principle is not affected by sensor drift. Therefore, even after many years of operation, LevelSense measures as reliably and accurately as on the first day. Plug-and-play: LevelSense can easily be connected to external data loggers and controllers (PLCs). The choices are either analog (0/4-20 mA) or digital output signals (SHWP, MODBUS, SDI12). User-friendly: By turning the float wheel, the user can adjust or correct LevelSense easily using the LCD without any notebook or tablet. Moreover, the three function keys can be used to display all relevant information. Last but not least: In the variant Unilog-Light-ENC the shaft encoder is additionally equipped with an integrated, high-performance data logger for storage of measurement values. Water level measurement in water level stations with float shaft and in pipes from Ø 4 " Parameters: Water level [m],[cm] Sensor: Shaft encoder Measurement principle: Float/counterweight Measuring range: 0- 15 m with a ball chain 0-100 m with float rope Measuring accuracy: 2.5 mm (depending on the float size)
