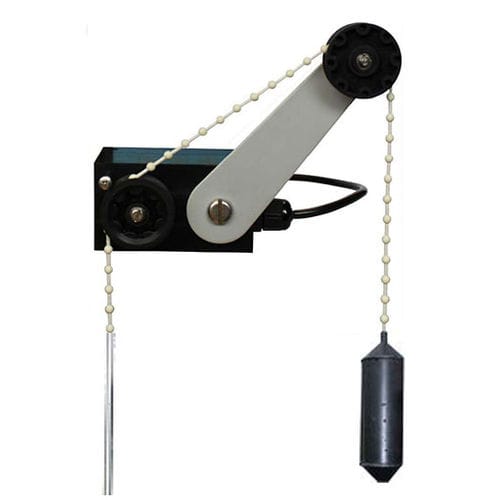

Float level sensor Surfloat Sensor 4

for waternot specifiedstainless steel

More affordable angle encoders for precise detection of water level fluctuations with float and counterweight Measuring range: 0-15 m with a ball chain or 0-100 m with float rope Measuring accuracy: 2.5 mm (depending on the size of the float) Adaptable to mechanical registration level of the type SEBA Delta and XI level Connectivity to SEBA measurement data collector UniLog-Light, Unilog, UniLogCom Precise, robust and drift-free: Ball chain and float pulley ensure slippage-free operation even during rapid changes in water level. The floating / counterweight principle allows no sensor drift. Therefore, even after many years of operation, the Surfloat Sensor 4 measures as reliably and accurately as on the first day. Uncomplicated: The Surfloat Sensor 4 can be easily connected to all common SEBA data loggers with pulse input. Furthermore, it is possible to adapt the sensor to an existing mechanical registration level. Economical: With its float shaft, the Surfloat Sensor 4 provides an affordable alternative to a pressure sensor, a radar sensor or a pneumatic system. Application: Water level measurement in water level stations with float shaft and in pipes starting from Ø 4 ".
