Vacuum furnace Vector UHV

chamberheat treatmentbrazing

Description
The Vector UHV is a horizontal single‑chamber vacuum furnace dedicated to vacuum brazing of electrical switch components such as vacuum interrupters and vacuum circuit breakers (VCB). It is engineered for ultra‑high‑purity processing and is assembled and tested in a clean room to minimize contamination.

Features

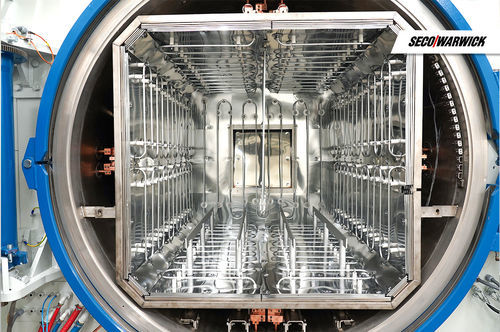

• Horizontal single‑chamber configuration with molybdenum hot zone for high‑purity processing
• Turbomolecular pumps to achieve high / ultra‑high vacuum
• Six thyristor‑controlled temperature zones for accurate thermal control
• External gas quenching system (quenching gases: nitrogen or argon)
• Operator‑friendly computer control and monitoring system
• Standard chamber sizes: 600×600×900 mm and 1000×1000×1200 mm

Advantages

• Vacuum process acts as protective and process atmosphere, eliminating the need for reactive process gases and associated emissions
• No CO2 emissions from the vacuum process and no combustion of fossil fuels for the vacuum cycle
• Cooling gas (N2 or Ar) can be recovered and returned to the air stream, reducing environmental impact
• Reinforced thermal insulation reduces electrical consumption (approx. 20%)
• High energy efficiency: IE3 class motors, inverter control and energy management algorithms
• Systems to optimize pumping, heating and cooling consumption
• Reduced hardening deformation and downstream machining; part washing after heat treatment generally not required

Process

• Vacuum brazing of electrical switch components (e.g., vacuum interrupters, VCB)

Industries

• Electrical
• Energy
• Power

Options / Sizes

• Two standard configurations: compact and larger furnace; other sizes available on request
• Larger configuration may include an additional central heating element to improve temperature uniformity and increase load capacity

Technical specifications

• Model: Vector UHV (horizontal single‑chamber vacuum furnace)
• Hot zone material: molybdenum
• Pumping: turbomolecular pumps for high / ultra‑high vacuum
• Standard chamber sizes: 600 × 600 × 900 mm and 1000 × 1000 × 1200 mm (larger sizes on request; larger option may include additional heating element)
• Load weight / capacity: standard 600 kg; 200 kg for 600×600×900 mm without additional heating element; 1200 kg (up to 1500 kg with additional heating element) for larger configuration
• Temperature uniformity: ±3 °C
• Ultimate vacuum: ≤ 8 × 10⁻⁸ mbar
• Operating vacuum at 850 °C: ≈ 1 × 10⁻⁶ mbar
• Leak rate: approx. 1 × 10⁻⁴ mbar·L/s
• Quenching pressure: 1 bar abs.
• Quenching gases: N2, Ar
• Heating control: six thyristor‑controlled zones
• Control: computer control system with operator interface
