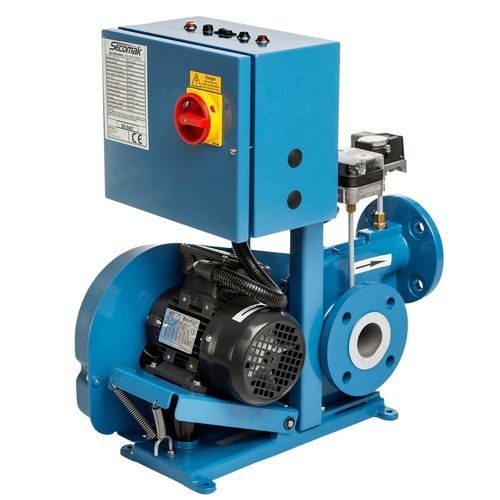

Impeller pressure booster 576/1 1PH

gasnatural gasgrease lubricated

Overview
Boost the pressure of natural gas and biogas in buildings including offices, schools, factories, hotels and restaurants. Designed to provide reliable increased gas pressure to support burners, boilers, CHP units, ovens and furnaces.

Key Features & Benefits

• Machined from a solid – Impellers are aerodynamically designed for maximum performance and efficiency and are constructed and machined from a single piece of aluminium for smooth rotation and high reliability.
• Sealed-for-life bearings – Sealed-for-life bearing design with precision machined impellers for long operating life, fewer parts to maintain and simplified maintenance.
• A range of boosters – Available in many variations to match pressure and flow demands; options for single and 3-phase power and supporting 240 to 415 V supplies for global installations.
• Built to last and gas safe – Designed and manufactured in the UK; each booster undergoes rigorous testing in accordance with British Standard BS 8487:2007 and conforms to IGEM UP/2 regulations.

Performance Data (nominal)
Volume: 300 m3/hr
Pressure (outlet): 30 mbar
Power: 0.55 kW
Power Supply: 230 V
Supply Phase: 1

Downloads
Technical specification and datasheet available for this model (PDF).

Technical specifications

• Model: Model 576/1 1PH
• Nominal flow: 300 m3/hr
• Nominal outlet pressure: 30 mbar
• Motor power: 0.55 kW
• Supply voltage: 230 V
• Supply phase: Single phase (1)
• Impeller: Machined from one piece of aluminium
• Bearings: Sealed-for-life bearing design
• Compliance: Tested to BS 8487:2007 and conforms to IGEM UP/2 regulations
• Available variants: Single and 3-phase options; supports 240–415 V supply ranges (model-dependent)
