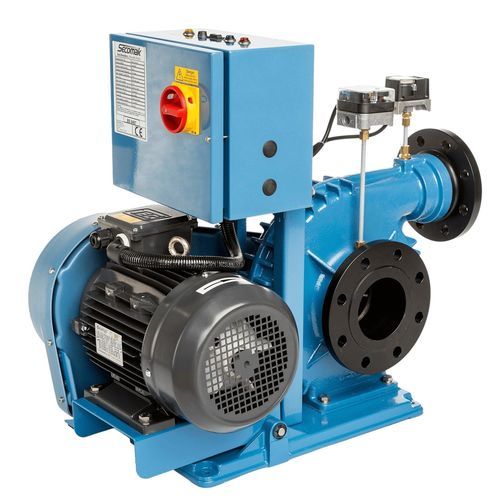

Centrifugal pressure booster 540/1

impellergasnatural gas

Product overview
Increase the pressure of natural gas and biogas for commercial and industrial buildings, including offices, schools, factories, hotels and restaurants.

Features & benefits

• Impeller machined from a single piece of aluminium: aerodynamically profiled for performance and rotational balance.
• Sealed-for-life bearings: reduced maintenance and extended service intervals with minimal spare parts.
• Multiple configurations: available in single- and three-phase versions and supporting 240–415 V supplies for global installations.
• Gas safety and compliance: designed and manufactured in the UK; tested to BS 8487:2007 and conforming to IGEM UP/2 regulations.

Performance & supply
Volume: 900 m³/h
Pressure (max typical): 80 mbar
Power: 4 kW
Power supply: 400 V
Supply phase: 3

Downloads
Technical specification available (PDF datasheet provided by manufacturer).

Technical specifications

• Suitable gases: natural gas and biogas.
• Nominal volume flow: 900 m³/h.
• Maximum outlet pressure (typical for this model): 80 mbar.
• Drive power: 4 kW.
• Power supply options: supports 240–415 V; example shown at 400 V.
• Supply phase: 3-phase (single-phase variants available across the range).
• Impeller: machined from a single piece of aluminium for aerodynamic efficiency and reliability.
• Bearings: sealed-for-life design to reduce maintenance.
• Manufacturing & compliance: designed and manufactured in the UK; tested to BS 8487:2007; conforms to IGEM UP/2 regulations.
• Available configurations: multiple variations and packages (e.g., APS Inverter System, Duty/Standby, Gas Sensor System, acoustic options and accessories) to meet site requirements.
