Manual retractable bollard

electric

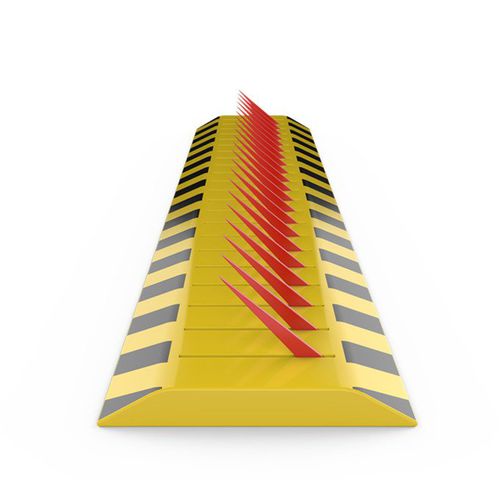

This type of spike barrier is driven by an electric motor installed in front of the main gate. Mostly, it is in rising status. When there is authorized vehicle to access, security people can use the remote control or manual switch to put the spike down. It can be integrated with all access control system or parking system. The Spiker Barrier is commonly used with the parking boom barrier and traffic light. When the green light on, the tire killer spike will close then the parking boom will rise up. When the red light is on, the parking boom will close and then the spike will rise up. This is to avoid the spike damage the vehicle tires. They can also be equipped with loop detector coil to close automatically, beam sensor for safety. We have our standard size but we can also customize based on clients requirement. Application range: Intersection safe protection in the main area Material: A3 Steel Surface treatment: Anti-rust Paint with reflective strip IP rate: IP67 Specified color: Black and yellow Length: Max 7m Width ：520mm Height: 70～90mm Max loading weight: 80T Tyre Killer Spike Height: 150mm Spike Thickness: 10mm Drive mode: Electromechanical Working Environment: -40℃～+70℃ Control mode: Short-range wireless remote control/drive-by-wire Remote control distance: within 100M Traffic light interface Gang control with parking barrier and parking system Material thickness：12mm(14,16mm options) The whole plate forming bending System ：220V electric motor drive Power supply：220（Control voltage 24V） System dynamic power (w)：180W Rising time：≤1-2S Lowering time：≤1-2S Working Temperature：-35℃~75℃ Storage Environment ：-10℃~65℃ Color： Optional Weight：0.3T
