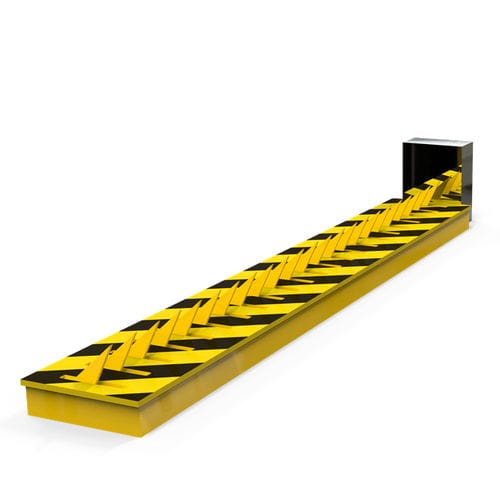

The surface mounted tyre spike barrier is easier for installation. But for some area, most of the vehicles have a low chassis. Even though the surface mounted one is very thin, it can still hit the chassis if there is a sports car. The flushed mounted tyre killer is shallowly buried. After installed, the spiked road barrier is flushed with the ground. So when the spike close, the vehicle can pass by like nothing there. The working principle of the flushed mounted design is the same as the surface mounted one. The spike is driven by the electric motor.
Application range: Intersection safe protection in the main area
Material: A3 Steel
Surface treatment: Paint with reflective strip
IP rate: IP67
Specified color: Black and yellow
Length: Customized
Width :500mm
Height: 70~90mm
Max loading weight: 80T
Spike Height: 150mm
Spike Thickness: 10mm
Drive mode: Electromechanical
Working Environment: -40℃~+70℃
Control mode:Short-range wireless remote control/drive-by-wire
Control distance ≤100M
Remote control distance: within 50M
Traffic light interface
Gang control with parking barrier
Material thickness:12mm
The whole plate forming bending, no welding
System :220V electric drive
Passing pressure:Max 80T container truck
Power supply:220(Control voltage 24V)
System dynamic power (w):180W
Rising time:≤1-2S
Lowering time:≤1-2S
Working Temperature:-35℃~75℃
Storage Environment :-10℃~65℃
Material:A3 steel, with anti-rust paint
Color: Optional
Weight:0.5T
Casing Spec: Standard casing(Size can be customized)
