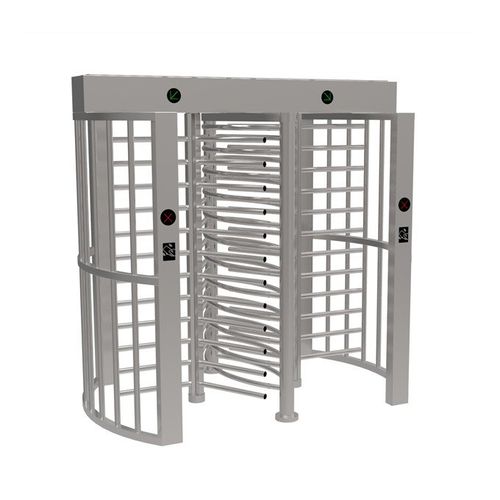

The Technical Parameter of Full-high Gate
Supply Voltage: 110V-240V, 50HZ
Size:L2400*W1500*H2310
Arm length :600(mm)
Weight :250kg Running direction:Single direction, bi-direction
Solenoid control
Working temperature: -15℃ - 60 ℃
Relative humidity: ≤95%, No Condensation
Input Interface: +12 V level signal or pulse width> DC12V pulse signal of 100ms
Communication Interface: RS485/Relay signal
Communication Distance: ≤1200m
Arm Length:600mm
Passing speed: 30people/min(normal open),20people/min(normal close)
