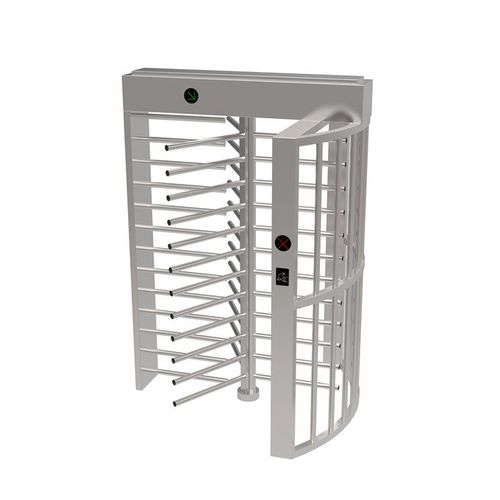

Full height turnstile gate
The high turnstile also called the rotary gate. It was developed from the tripod turnstile and learns from the characteristics of the revolving door (the biggest difference is that the blocking body is not a glass door but a metal fence). According to the height of the blocking body, it is divided into the full-height rotary gate (also called full-high gate or full height security turnstile) and half-height turning gate (also called semi-high turning gate).
It is divided into mechanical and semi-automatic types from the movement control method. It is divided into a single channel, dual channel, three channel, four channel, etc. from the number of channels. Single channel and dual channel are common.
Technical Parameter of Full Height Turnstile
Supply Voltage: 110V-240V, 50HZ
Size:1630*1500*2310MM
Arm length :600(mm)
Weight :180kg
Running direction:Single direction, bi-direction
Drive Solenoid:DC 24V
Working temperature: -15℃ - 60 ℃
Relative humidity: ≤95%, No Condensation
Input Interface: +12 V level signal or pulse width> DC12V pulse signal of 100ms
Communication Interface: RS485/Relay signal
Communication Distance: ≤1200m
Arm Length:600mm
Passing speed: 30people/min(normal open),20people/min(normal close)
