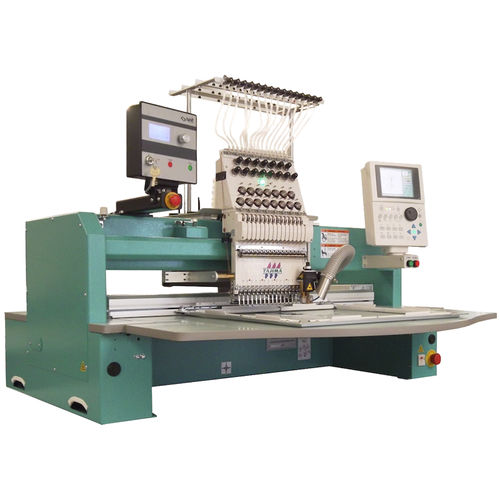

CO2 laser marking machine SHL

fabriccontinuousdigital

Cutting applications and fabrics thanks to a laser mounted next to the embroidery heads, is now possible thanks to the Single Head Laser (SHL) with continuous movement of the frame. A perfect combination, born from the cooperation between Seit and Tajima to meet the growing needs of embroiderers who customize unique pieces or small series, without renouncing to offer élite quality. TECHNICAL DATA SINGLE HEAD LASER Laser tube : CO2 sealed Max cutting speed : Up to 80mm/sec (settable at the embroidery side) Laser power : 10W Useful working area : Same as the embroidery machine Cooling : By air on the laser tube Compatible models : Tajima TFMX, TWMX with continuous frame movement Tajima TEJT, TEMX with step frame movement Required voltage : 230V 50/60 Hz (available also as 110V 50/60 Hz)
