flue gas analyzer / oxygen / carbon monoxide / nitrogen monoxide
CHEMIST 100 BE GREEN

{{requestButtons}}

Characteristics

  • Measured entity:

    oxygen, flue gas, carbon monoxide, nitrogen monoxide, exhaust gas

  • Measured value:

    concentration

  • Configuration:

    portable

  • Other characteristics:

    compact, with data logger, battery-powered, for boilers

Description

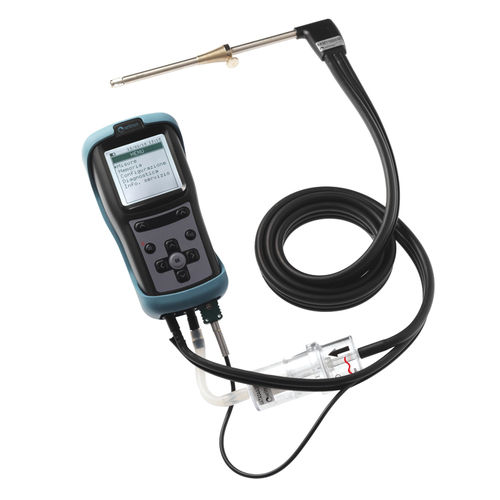

Seitron introduce Chemist 100 BE GREEN, the new range of compact flue gas analyzers 2 and 3 cells (O2,CO,NO), with precalibrated sensors, replaceable by end users.
The Range is available in 6 different KITS. Chemist 100 BE GREEN weights 350 g and it calculates the efficiency of condensing boiler, CO level in ambient, it measures CO2, heat stack loss and excess air calculation, NO on 3 sensors version.
The Range is featured by internal pressure probe, memory up to 5 analysis, rechargeable lithium Ion batteries, USB cable for unlimited data storage on PC, Bluetooth connection.

TECHNICAL FEATURES

Compliant with EN 50379-1 and EN 50379-2
CO measurement cell with 1 ppm resolution and built in NOx /SOx filter
Precalibrated gas sensors, field replaceable
3 consecutive analysis with average calculation
Internal memory for 5 analysis
Rechargeable lithium ion batteries (recharge: 4 hrs. up to 90%)
Up to 12 hrs. autonomy of continuous operation
Self diagnostic function with sensors status
AISI 316 connections
Up to 15 fuels [16 standard + 16 user]
6 different preprogrammed languages
Dimensions: Analyzer 70x60x170 (HxWxD), weight 0,35 Kg / Kit 130x510x430mm, weight 3,3 Kg
IR connection to IR printer
Bluetooth connectivity
QR code generation for analyses detail display by using APP
