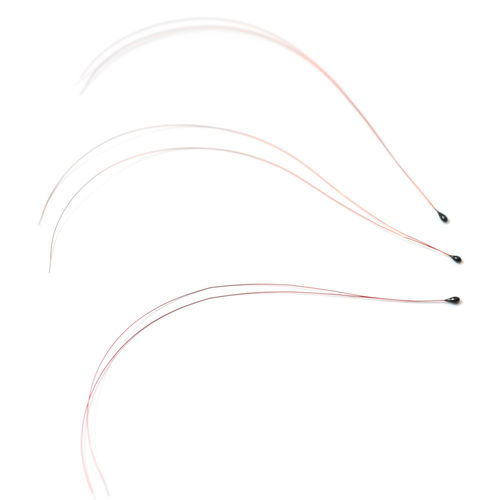

Insulated Lead Epoxy Thermistor (TS Series)
TS series thermistors have epoxy encapsulated bead dimensions of 0.63” x 0.157”, have an operating temperature range from -50°C to 110°C, are available in numerous base resistances and Betas, can be supplied with tolerances to ±1.0% at 25°C, with polyurethane insulated leads, with a lead strip of 0.118”, and are available with an overall length of 3.42”. RoHS Compliant.
Specifications
Custom Thermistors:
For Custom TS Series Thermistors - contact Selco
Resistance Tolerance:
4000 Ohms - 230000 Ohms
Beta:
3100K - 4774K
Tolerances:
±1%, ±3%, ±5%
Below are some example part numbers with application specific probe housing, lead wire details, overall length, etc. These assemblies are typically RoHS compliant.
TS-A050K-1
NTC thermistor, 50K Ohm base resistance at 25°C, Beta of 3977K (25/85), tolerance of ±1.0% at 25°C, 0.63” diameter epoxy encapsulated thermistor, with two #32 AWG Polyurethane insulated copper alloy leads, with a lead strip of 0.118”, with an overall length of 3.42”.
TS-F010K-3
NTC thermistor, 10K Ohm base resistance at 25°C, Beta of 3435K (25/85), tolerance of ±3.0% at 25°C, 0.63” diameter epoxy encapsulated thermistor, with two #32 AWG Polyurethane insulated copper alloy leads, with a lead strip of 0.118”, with an overall length of 3.42”.
