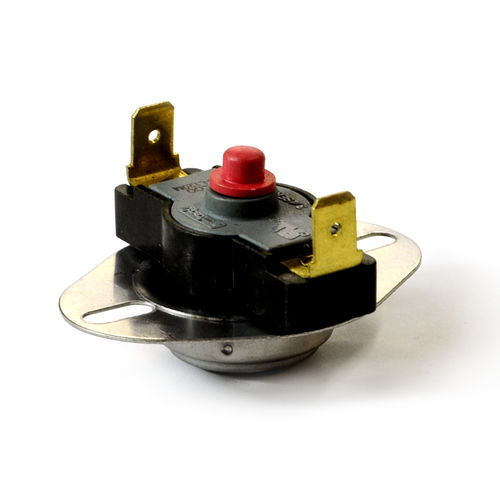

Preset thermostat SE Series

manual reset

Selco’s comprehensive line of highly reliable switches utilize a temperature sensitive bi-metal disc, electrically isolated from the switch. Contacts will close or open on temperature rise when the surface or ambient temperature increases to the snap point of the calibrated bi-metal disc. These disc thermostats are retained by a metal heat conducting sensing cap and are all single pole, single throw non-adjustable switches. To provide flexibility for customer specific applications, we offer a variety of terminal and mounting configurations. Specifications Series: SES (T11) Type: Manual Reset Function: Open On Rise (Normally Closed) Open Temperature: 160 ± 11°F Mounting/Sensing: Air Environmental: 32°F-350°F (0°C-176.6°C) Dielectric Strength: 1.500 VAC/1 minute Approvals: UL, C-UL, RoHS Description 3/4" Disc Thermostat, Manual reset, Opens at 160F ± 11°FF, Manual reset at 124F, .250"" quick connect vertical quick connect terminals, Air mount bracket, 90° orientation
