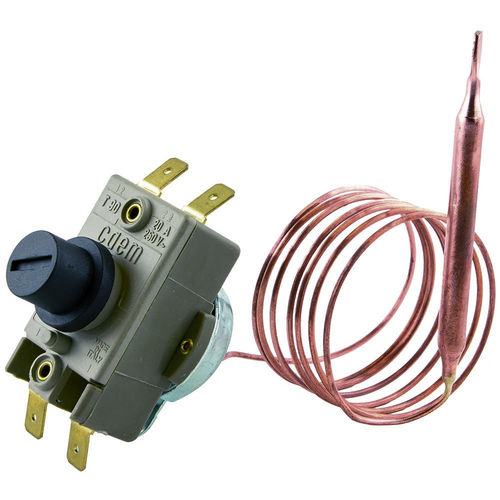

Electromechanical thermostat DPL-MR-2B Series
capillarydoubleHVAC

electromechanical thermostat
electromechanical thermostat
electromechanical thermostat
Add to favorites
Compare this product


Characteristics

Heating technology
electromechanical, capillary
Other characteristics
double
Applications
HVAC
Temperature

Max.: 752 °F (400 °C)

Min.: 122 °F (50 °C)

Description

Double Pole Thermostat: DPL-MR-2B DPL-MR-2B Series In addition to the single pole model, Selco has a single throw double pole version which is equipped with two sets of .250” faston terminals. This model is factory calibrated at a xed setting. It is manually resettable and is perfect for applications requiring a high limit safety control. This electric double pole thermostat is rated 20amp, 250VAC and 10amp, 400VAC. When the temperature rises, the bulb uid expands via a capillary tube to an expandable diaphragm within the remote thermostat set point. Selco switches are produced in an ISO 9001 certied factory to ensure safe and reliable operation. All models are 100% factory inspected to ensure proper temperature, continuity and function. Applications Horticulture Lighting, Greenhouses, Baseboard Heaters, Electric Hot Air Generators, Railway Specifications Type: Hot Control - Manual Reset Function: Open On Rise (Normally Closed) Switch: DPST Set Point: Manual Reset Temp Range: 122°F to 752°F (50°C to 400°C) Differential: N/A Bulb Diameter: Specify Bulb Material: Copper or Stainless Steel Capillary Length: Specify Accessories: Mounting Stuff Boxes Compression Fittings M9, M10, 3/8", 1/4" Reducer Bushings Insulation Sleeves Capillary Clamps Electrical Rating: 250VAC, 20 Amps, Resistive 400VAC, 10 Amps, Resistive Approvals: UL, C-UL, ENEC, RoHS UL File No E168164, XAPX2, XAPX8 Description An electromechanical control is used in HVAC and appliance applications. This electric thermostat is double pole single throw (DPST) and can be calibrated and designed to customer specifications.
