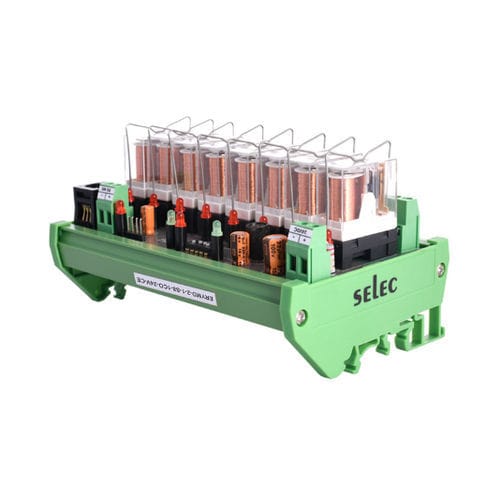

8-channel Relay module which reduce conventional wiring for triggering relays
Used in conjunction with MODBUS RS485 Master communication device Four Baudrate selections (9600, 19200, 38400, 57600 bps)
Seven Slave ID selection (1 to 7)
8 Relays 10A@230VAC with individual NO-NC with single Change over functionality
Auxillary Supply : 18 to 30 VDC
Specifications
Input Rating - 24V DC
No. of Channels - 8
No. of Contacts - 1 Change over
Output Contact Rating - 10A @240V AC / 10V DC
Communication Interface - RS485 Based MODBUS RTU
Baudrate - 9600 – 57600bps
Size - 72 x 133mm
